| The PC machine is special design for 5 Liter
to 20 Liter PC distilled water bottles making machine. |
|
 |
 |

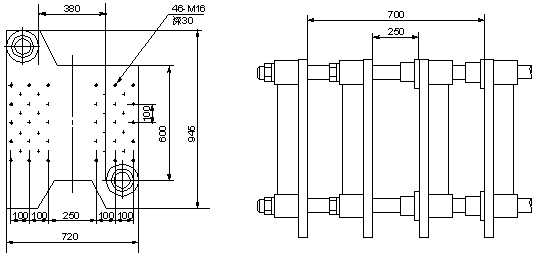

MOLD PLATE DIMENSION |
|
 |
|
SPECIFICATION |
|
 Clamping
Unit |
| Modle
No. |
BMM - 82PC |
| RESIN |
|
PC |
| Clamping force |
KN |
200 |
| Article volume |
Liter |
5 -
20 |
| Platen opening
stroke |
mm |
250 ~
270 |
| Plant size ( W x H ) |
mm |
720 x
600 |
| Mold thickness |
mm |
250 ~
350 |
| Mold size |
mm |
380 x
650 |
| Mold closeing speed |
mm/s |
310 |
| Main
Machine Dimensions |
| Extruder |
. |
82 / 24 |
| Length |
mm |
4600 |
| Height |
mm |
3400 |
| Width |
mm |
2700 |
| Total weight |
ton |
8 |
| Die
Head |
| Number of heating
zone |
. |
4 |
| Max die size |
mm |
120 |
| Extruder |
| Raw material |
. |
PC |
| Screw diameter |
mm |
82 |
| Screw L/D ratio |
L/D |
24 :
1 |
| Screw rotation speed |
rpm |
8 ~
75 |
| Ejection pressure |
bar |
600 |
| Ejection volume |
Liter |
1.5 |
| Number of heating
zone |
. |
5 |
| Drive
and Heating capacities |
| Hydr pump |
KW |
45 |
| Screw heating power |
KW |
28.2 |
| Max drive power |
KW |
46.5 |
| Head heating ( 1 ph
) |
KW |
8.3 |
| Total connect load |
KW |
60 |
| Average energy
consumption |
KW |
42 |
|
