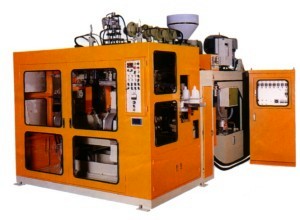

| These modles are double station, designed for high out put and can be
supplied with different die head (multi-layer). In addition to the increased out put they
can also save on working space, electricity, water etc., thereby reducing production
costs. |
|
 |
 |

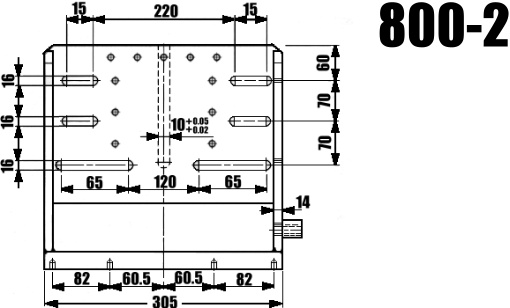

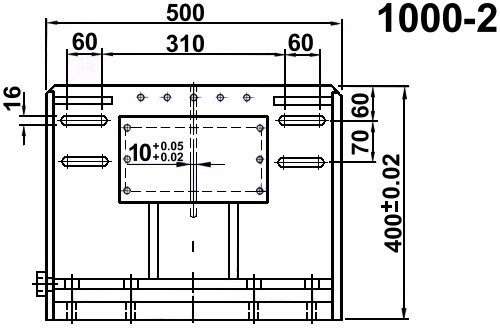

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 800- 2 |
BMM - 1000- 2 |
| RESIN |
|
PE |
PE |
| PRODUCT MAX CAPACITY |
LITER |
5 |
3 - 5 |
| DRY CYCLE |
SEC/CYCLE |
3.7 -
4.0 |
4.5 |
| MOLD CLAMPING FORCE |
TON |
7 |
7 |
| EXTRUDING CAPACITY |
KG/HR |
90 |
120 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
80 |
90 |
| L/D RATIO |
L/D |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
20 -
80 |
| DRIVE MOTOR |
HP VS |
40 |
50 |
| BARREL HEATING ZONE |
ZONE |
3 |
3 |
| BARREL HEATING
CAPACITY |
KW |
11 |
13.5 |
| COOLING FAN (1/4HP) |
SET |
4 |
2 |
| HEAD & ACCUMULATOR |
| DIE HEAD |
SET |
1 |
1 |
| DIE HEAD HEATING
ZONE |
ZONE |
7 |
3 |
| DIE HEAD HEATING
CAPACITY |
KW |
16.2 |
16.5 |
| DIE MOUTH MAX
DIMENSION |
M/M |
65 |
88 |
| DOUBLE HEAD CENTER
DISTANCE |
M/M |
0 |
0 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
40 -
110 |
50 -
220 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
7 x 2 |
7 x 2 |
| CLAMPING MOLD STROKE |
M/M |
320 x
2 |
320 x
2 |
| OPEN/CLOSE STROKE |
M/M |
( 550
- 100 ) x 2 |
( 550
- 230 ) x 2 |
| MOLD DIMENSION |
M/M |
( 410
x 330 ) x 2 |
( 410
x 330 ) x 2 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
10 |
| AIR PRESSURE |
KG/CM2 |
4.0 -
6.0 |
4.0 -
6.0 |
| AIR COMPRESSOR |
HP |
3 |
5 |
| OIL TANK CAPACITY |
LITER |
100 |
400 |
| COOLING
WATER(L/MINUTE) |
LITER |
40 |
40 |
| ELECTRICITY
CONSUMPTION |
KW |
60 |
60 |
| PACKING |
| MACHINE DIMENSION |
CM |
330x240x320 |
330x240x320 |
| NET WEIGHT |
TON |
7.5 |
7.5 |
| GROSS WEIGHT |
TON |
8.2 |
8.2 |
| PACKING DIMENSION |
CM |
330x246x246 |
330x246x246 |
|
