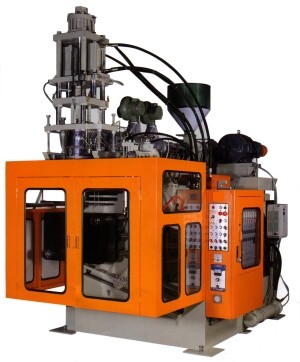

| Suitable for 2 liter to 20 liter containers. Depending on the
production requirement extrusion type or accumulation type can be adapted for specialized
containers (i.e car parts, concave handles and stackable containers) |
|
 |
 |

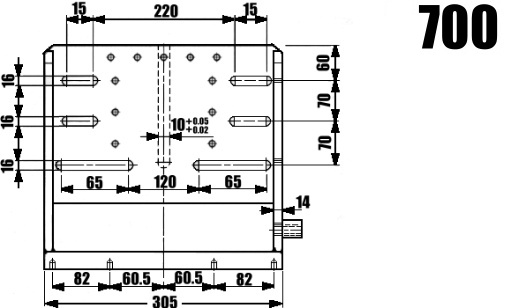

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM700 |
BMM700C |
BMM700D |
| RESIN |
|
PE |
PVC |
PE |
| PRODUCT MAX CAPACITY |
LITER |
3 -
10 |
3 -
10 |
2 - 5 |
| DRY CYCLE |
SEC/CYCLE |
6.5 -
6.8 |
6.5 -
6.8 |
6.5 -
6.8 |
| MOLD CLAMPING FORCE |
TON |
13.3 |
13.3 |
13.3 |
| EXTRUDING CAPACITY |
KG/HR |
70 |
70 |
70 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
75 |
75 |
75 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
20 -
50 |
20 -
80 |
| DRIVE MOTOR |
HP VS |
25 |
30 |
25 |
| BARREL HEATING ZONE |
ZONE |
3 |
3 |
3 |
| BARREL HEATING
CAPACITY |
KW |
8.6 |
8.4 |
8.6 |
| COOLING FAN (1/4HP) |
SET |
2 |
3 |
|
| HEAD & ACCUMULATOR |
| HEAD |
SET |
|
|
2 |
| HEAD HEATING ZONE |
ZONE |
5 |
3 |
4 |
| HEAD HEATING
CAPACITY |
KW |
11.6 |
|
12.4 |
| DIE OUTSIDE DIAMETER |
M/M |
215 |
140 |
110 |
| TWIN HEAD CENTER
DISTANCE |
M/M |
|
|
200 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
80 -
280 |
80 -
280 |
40 -
150 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
13.3 |
13.3 |
13.3 |
| CLAMPING MOLD STROKE |
M/M |
540 |
540 |
540 |
| OPEN/CLOSE STROKE |
M/M |
700 -
160 |
700 -
160 |
700 -
160 |
| MOLD DIMENSION |
M/M |
800 x
540 |
800 x
450 |
800 x
540 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
15 |
15 |
15 |
| AIR PRESSURE |
KG/CM2 |
4 - 6 |
4 - 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
2 |
2 |
3 |
| OIL TANK CAPACITY |
LITER |
400 |
400 |
400 |
| COOLING
WATER(L/MINUTE) |
LITER |
50 |
|
50 |
| ELECTRICITY
CONSUMPTION |
KW |
50.5 |
37.5 |
52.7 |
| PACKING |
| MACHINE DIMENSION |
CM |
330x230x270 |
330x230x270 |
330x230x270 |
| NET WEIGHT |
TON |
6.4 |
6.2 |
6.2 |
| GROSS WEIGHT |
TON |
7.4 |
8 |
8 |
| PACKING DIMENSION |
CM |
348x248x241 |
348x248x241 |
348x248x241 |
|
