| These series is specialized in high quality & multifunction
container's production. |
| W: |
VISI STRIPE |
| L2: |
TWO LAYER |
| L3: |
THREE LAYER |
| L4: |
FOUR LAYER |
|
 |
 |

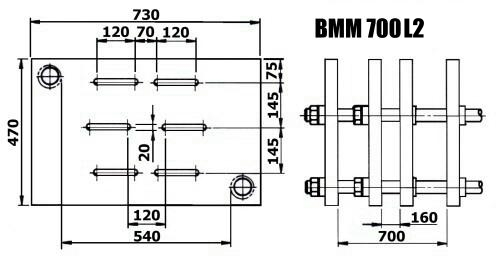

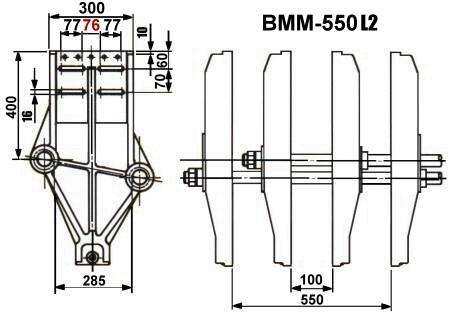

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 550L2 |
BMM - 700L2 |
| RESIN |
|
PE |
PE |
| PRODUCT MAX CAPACITY |
Liter |
0.5
- 5 |
3 - 10 |
| DRY CYCLE |
SEC/CYCLE |
3.7
- 4.0 |
6.5 - 6.8 |
| MOLD CLAMPING FORCE |
TON |
4.7 |
13.3 |
| EXTRUDING CAPACITY |
KG/HR |
45 |
70 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
25 |
65 |
25 |
25 |
| L/D RATIO |
L/D |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20
- 80 |
20 - 80 |
| DRIVE MOTOR |
HP VS |
2 |
20 |
2 |
25 |
| BARREL HEATING ZONE |
ZONE |
3 |
3 |
| BARREL HEATING
CAPACITY |
KW |
2.4 |
5.6 |
2.4 |
8.6 |
| COOLING FAN (1/4HP) |
SET |
|
2 |
| HEAD & ACCUMULATOR |
| HEAD |
SET |
1 |
1 |
| HEAD HEATING ZONE |
ZONE |
3 |
3 |
| HEAD HEATING
CAPACITY |
KW |
6.5 |
5.7 |
| DIE OUTSIDE DIAMETER |
M/M |
88 |
105 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
50
- 200 |
60 - 280 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
4.7 |
13.3 |
| CLAMPING MOLD STROKE |
M/M |
450 |
540 |
| OPEN/CLOSE STROKE |
M/M |
500
- 100 |
700 - 160 |
| MOLD DIMENSION |
M/M |
410
x 330 |
800 x 540 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
15 |
| AIR PRESSURE |
KG/CM2 |
4
- 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
3 |
2 |
| OIL TANK CAPACITY |
LITER |
330 |
150 |
| COOLING
WATER(L/MINUTE) |
LITER |
40 |
50 |
| ELECTRICITY
CONSUMPTION |
KW |
40.7 |
50.5 |
| PACKING |
| MACHINE DIMENSION |
CM |
290x200x280 |
330x230x270 |
| NET WEIGHT |
TON |
4.6 |
6.4 |
| GROSS WEIGHT |
TON |
5.5 |
7.2 |
| PACKING DIMENSION |
CM |
311x205x250 |
348x248x241 |
|
