| Suitable for 100 cc to 1000 cc containers. Depending on the
production requirement extrusion type or accumulation type can be adapted for specialized
containers (i.e car parts, concave handles and stackable containers) |
|
 |
 |

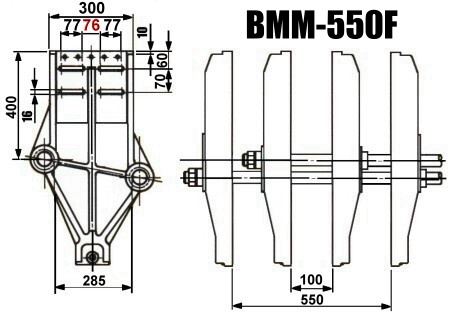

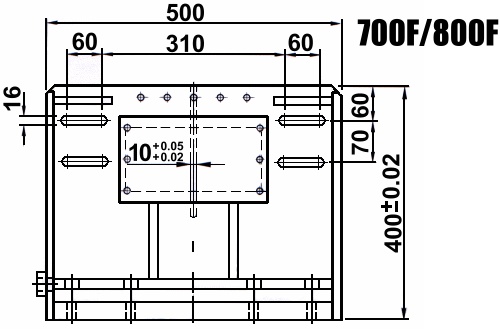

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 550F |
BMM - 700F |
BMM - 800F |
| RESIN |
|
PE |
PE |
PE |
| PRODUCT MAX CAPACITY |
CC |
100 -
500 |
100 -
1000 |
100 -
1000 |
| DRY CYCLE |
SEC/CYCLE |
4.5 -
4.8 |
3.7 -
4.0 |
3.7 -
4.0 |
| MOLD CLAMPING FORCE |
TON |
7 |
7 |
4.7 |
| EXTRUDING CAPACITY |
KG/HR |
45 |
70 |
90 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
65 |
75 |
80 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
20 -
80 |
20 -
80 |
| DRIVE MOTOR |
HP VS |
25 |
20 |
50 |
| BARREL HEATING ZONE |
ZONE |
3 |
3 |
3 |
| BARREL HEATING
CAPACITY |
KW |
5.6 |
13.5 |
13.5 |
| COOLING FAN (1/4HP) |
SET |
1 |
2 |
2 |
| HEAD & ACCUMULATOR |
| DIE HEAD |
SET |
4 |
4 |
4 |
| DIE HEAD HEATING
ZONE |
ZONE |
15 |
15 |
15 |
| DIE HEAD HEATING
CAPACITY |
KW |
12 |
15 |
12 |
| DIE MOUTH OUTSIDE
DIAMETER |
M/M |
46 |
12 |
46 |
| FOUR DIE HEAD CENTER
DISTANCE |
M/M |
125 |
125 |
125 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
30 -
110 |
30 -
110 |
30 -
110 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
7 |
7 |
4.7 |
| CLAMPING MOLD STROKE |
M/M |
450 |
450 |
450 |
| OPEN/CLOSE STROKE |
M/M |
550 -
200 |
550 -
100 |
550 -
100 |
| MOLD DIMENSION |
M/M |
410 x
330 |
410 x
330 |
410 x
330 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
10 |
10 |
| AIR PRESSURE |
KG/CM2 |
4 - 6 |
4 - 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
3 |
3 |
3 |
| OIL TANK CAPACITY |
LITER |
100 |
300 |
100 |
| COOLING
WATER(L/MINUTE) |
LITER |
40 |
40 |
40 |
| ELECTRICITY
CONSUMPTION |
KW |
40.4 |
67 |
67 |
| PACKING |
| MACHINE DIMENSION |
CM |
300x220x310 |
. |
. |
| NET WEIGHT |
TON |
. |
. |
. |
| GROSS WEIGHT |
TON |
. |
. |
. |
| PACKING DIMENSION |
CM |
. |
. |
. |
|
