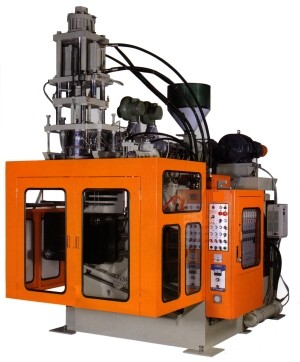

| Suitable for 1 liter to 20 liter containers. Depending on the
production requirement extrusion type or accumulation type can be adapted for specialized
containers (i.e car parts, concave handles and stackable containers) |
|
 |
 |

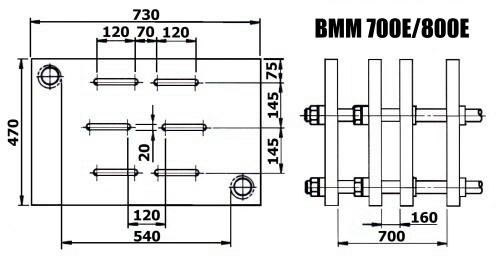

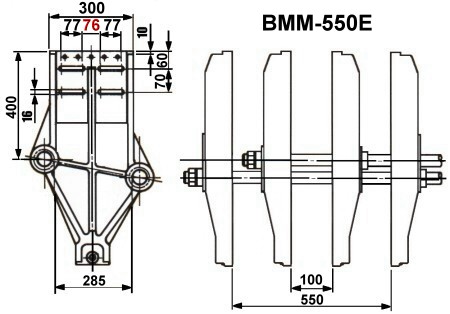

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 550E |
BMM - 700E |
BMM - 800E |
| RESIN |
|
PE |
PE |
PE |
| PRODUCT MAX CAPACITY |
LITER |
1 - 5 |
5 -
15 |
5 -
20 |
| DRY CYCLE |
SEC/CYCLE |
4.2 -
4.5 |
6.5 |
6.5 |
| MOULD CLAMPING FORCE |
TON |
4.7 |
13.3 |
13.3 |
| EXTRUDING CAPACITY |
KG/HR |
45 |
70 |
90 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
65 |
75 |
80 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
20 -
80 |
20 -
80 |
| DRIVE MOTOR |
HP VS |
20 |
25 |
40 |
| BARREL HEATING ZONE |
ZONE |
3 |
4 |
4 |
| BARREL HEATING
CAPACITY |
KW |
5.6 |
8.6 |
8.6 |
| COOLING FAN (1/4HP) |
SET |
0 |
2 |
2 |
| HEAD & ACCUMULATOR |
| HEAD ACCUNULATE
CAPACITY |
KG |
2 |
2 |
2 |
| HEAD TEMPERATURE
CONTROL |
ZONE |
4 |
5 |
5 |
| HEAD HEATING
CAPACITY |
KW |
11 |
13 |
13 |
| DIE OUTSIDE DIAMETER |
M/M |
150 |
220 |
220 |
| PARISON THICKNESS
CONTROL |
POINT |
1 |
1 |
1 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
4.7 |
13.3 |
13.3 |
| CLAMPING MOLD STROKE |
M/M |
450 |
540 |
540 |
| OPEN/CLOSE STROKE |
M/M |
550 -
100 |
700 -
160 |
800 -
260 |
| MOLD DIMENSION |
M/M |
410 x
330 |
800 x
540 |
800 x
540 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
15 |
15 |
| AIR PRESSURE |
KG/CM2 |
4 - 6 |
4 - 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
5 |
5 |
3 |
| OIL TANK CAPACITY |
LITER |
330 |
400 |
150 |
| COOLING
WATER(L/MINUTE) |
LITER |
60 |
50 |
50 |
| ELECTRICITY
CONSUMPTION |
KW |
41.3 |
53.3 |
65 |
| PACKING |
| MACHINE DIMENSION |
CM |
300x200x310 |
348x225x334 |
348x225x334 |
| NET WEIGHT |
TON |
5 |
7 |
7 |
| GROSS WEIGHT |
TON |
5.9 |
8 |
8 |
| PACKING DIMENSION |
CM |
321x205x250 |
361x248x256 |
361x248x256 |
|
