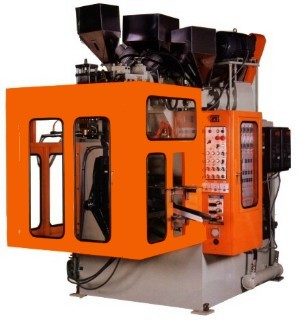

| These series is specialized in high quality & multifunction
container's production. |
| W: |
VISI STRIPE |
| L2: |
TWO LAYER |
| L3: |
THREE LAYER |
| L4: |
FOUR LAYER |
|
 |
 |
MOLD PLATE DIMENSION |
|
 |
|
BMM |
| Size |
330W |
410W |
550W |
| A |
280 |
285 |
300 |
| B |
70 |
72 |
77 |
| C |
48 |
61 |
76 |
| D |
50 |
60 |
60 |
| E |
80 |
80 |
70 |
| F |
330 |
410 |
550 |
| G |
320 |
370 |
400 |
| H |
225 |
264.5 |
285 |
| I |
80 |
80 |
100 |
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 330W |
BMM - 410W |
BMM - 550W |
| RESIN |
|
PE |
PE |
PE |
| PRODUCT MAX CAPACITY |
C.C |
50
- 1000 |
150
- 2500 |
0.5-
5(LITER) |
| DRY CYCLE |
SEC/CYCLE |
2.1
- 2.3 |
3.0
- 3.2 |
3.7
- 4.0 |
| MOLD CLAMPING FORCE |
TON |
2.6 |
3.2 |
4.7 |
| EXTRUDING CAPACITY |
KG/HR |
30 |
30 |
45 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
25 |
45 |
25 |
55 |
25 |
65 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 - 80 |
20 - 80 |
20 - 80 |
| DRIVE MOTOR |
HP VS |
2 |
10 |
2 |
15 |
2 |
20 |
| BARREL HEATING ZONE |
ZONE |
3 |
3 |
3 |
| BARREL HEATING
CAPACITY |
KW |
2.4 |
3.6 |
2.4 |
5.6 |
2.4 |
5.6 |
| COOLING FAN (1/4HP) |
SET |
|
|
|
| HEAD & ACCUMULATOR |
| HEAD |
SET |
1 |
1 |
1 |
| HEAD HEATING ZONE |
ZONE |
3 |
3 |
3 |
| HEAD HEATING
CAPACITY |
KW |
2.3 |
4 |
6.5 |
| DIE OUTSIDE DIAMETER |
M/M |
46 |
65 |
88 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
20
- 110 |
30
- 150 |
50
- 200 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
2.6 |
3.2 |
4.7 |
| CLAMPING MOLD STROKE |
M/M |
250 |
330 |
450 |
| OPEN/CLOSE STROKE |
M/M |
330
- 80 |
410
- 80 |
550
- 100 |
| MOLD DIMENSION |
M/M |
320
x 280 |
380
x 300 |
410
x 330 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
10 |
10 |
| AIR PRESSURE |
KG/CM2 |
4
- 6 |
4
- 6 |
4
- 6 |
| AIR COMPRESSOR |
HP |
2 |
2 |
3 |
| OIL TANK CAPACITY |
LITER |
230 |
300 |
330 |
| COOLING
WATER(L/MINUTE) |
LITER |
40 |
40 |
40 |
| ELECTRICITY
CONSUMPTION |
KW |
13 |
34.2 |
40.7 |
| PACKING |
| MACHINE DIMENSION |
CM |
230x170x240 |
260x190x260 |
290x200x280 |
| NET WEIGHT |
TON |
2.6 |
3.3 |
4.6 |
| GROSS WEIGHT |
TON |
3.2 |
4.1 |
5.5 |
| PACKING DIMENSION |
CM |
246x189x225 |
293x204x225 |
311x205x250 |
|
