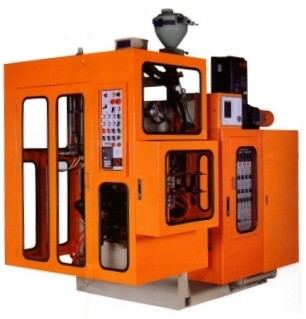

| BMM-330DC Suitable for producing 60cc- 600 cc containers |
| BMM-410DC Suitable for producing 200cc- 1000 cc containers |
| BMM-550DC Suitable for producing 200cc- 1800 cc containers |
| If higher output is needed the head can be supplied for twin, triple
and quadruple extrusion. |
|
 |
 |

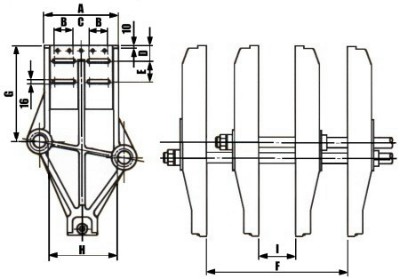

MOLD PLATE DIMENSION |
|
 |
|
BMM |
| Size |
330DC |
410DC |
550DC |
| A |
280 |
285 |
300 |
| B |
70 |
72 |
77 |
| C |
48 |
61 |
76 |
| D |
50 |
60 |
60 |
| E |
80 |
80 |
70 |
| F |
330 |
410 |
550 |
| G |
320 |
370 |
400 |
| H |
225 |
264.5 |
285 |
| I |
80 |
80 |
100 |
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 330DC |
BMM - 410DC |
BMM - 550DC |
| RESIN |
|
PVC |
PVC |
PVC |
| PRODUCT MAX CAPACITY |
C.C |
60 -
600 |
200 -
1000 |
200 -
1800 |
| DRY CYCLE |
SEC/CYCLE |
2.1 -
2.3 |
3.0 -
3.2 |
3.7 -
4.0 |
| MOLD CLAMPING FORCE |
TON |
2.6 |
3.2 |
4.7 |
| EXTRUDING CAPACITY |
KG/HR |
10 x
2 |
20 x
2 |
25 x
2 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
40 x
2 |
45 x
2 |
50 x
2 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
50 |
20 -
50 |
20 -
50 |
| DRIVE MOTOR |
HP VS |
10 x
2 |
15 x
2 |
20 x
2 |
| BARREL HEATING ZONE |
ZONE |
3 x 2 |
3 x 2 |
3 x 2 |
| BARREL HEATING
CAPACITY |
KW |
3.4 x
2 |
3.2 x
2 |
3 x 2 |
| COOLING FAN (1/4HP) |
SET |
3 x 2 |
3 x 2 |
3 x 2 |
| HEAD & ACCUMULATOR |
| HEAD |
SET |
2 |
2 |
2 |
| HEAD HEATING ZONE |
ZONE |
3 x 2 |
3 x 2 |
3 x 2 |
| HEAD HEATING
CAPACITY |
KW |
5 |
1.9 x
2 |
1.9 x
2 |
| DIE OUTSIDE DIAMETER |
M/M |
32 |
46 |
46 |
| TWIN HEAD CENTER
DISTANCE |
M/M |
125 |
125 |
125 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
30 -
90 |
30 -
90 |
40 -
90 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
2.6 |
3.2 |
4.7 |
| CLAMPING MOLD STROKE |
M/M |
250 |
330 |
450 |
| OPEN/CLOSE STROKE |
M/M |
330 -
80 |
410 -
80 |
550 -
100 |
| MOLD DIMENSION |
M/M |
320 x
280 |
380 x
300 |
410 x
330 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
10 |
10 |
10 |
| AIR PRESSURE |
KG/CM2 |
4 - 6 |
4 - 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
2 |
2 |
3 |
| OIL TANK CAPACITY |
LITER |
230 |
300 |
330 |
| COOLING
WATER(L/MINUTE) |
LITER |
|
|
40 |
| ELECTRICITY
CONSUMPTION |
KW |
29.8 |
44.3 |
52.3 |
| PACKING |
| MACHINE DIMENSION |
CM |
280x220x230 |
320x200x250 |
320x195x261 |
| NET WEIGHT |
TON |
2.9 |
3.1 |
5.0 |
| GROSS WEIGHT |
TON |
3.5 |
3.7 |
5.9 |
| PACKING DIMENSION |
CM |
300x225x255 |
326x204x225 |
341x206x250 |
|
