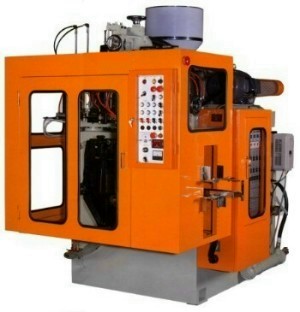

| Suitable for producing small capacity 5 cc- 400 cc . With fast speed
quietness & good steady. |
|
 |
 |

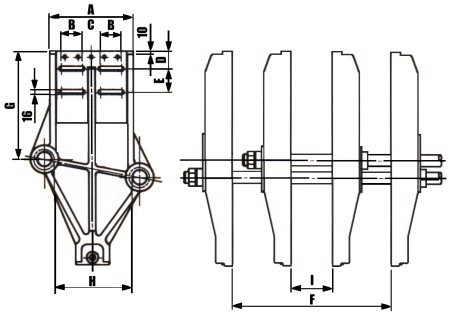

MOLD PLATE DIMENSION |
|
 |
| BMM-250 |
| A |
170 |
| B |
44 |
| C |
23 |
| D |
36 |
| E |
65 |
| F |
240 |
| G |
240 |
| H |
156 |
| I |
60 |
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM250 |
BMM250D |
BMM250C |
BMM250DC |
| RESIN |
|
PE |
PE |
PVC |
PVC |
| PRODUCT MAX CAPACITY |
C.C |
15 -
400 |
15 -
160 |
15 -
400 |
15 -
160 |
| DRY CYCLE |
SEC/CYCLE |
. |
. |
2.0 |
. |
| MOLD CLAMPING FORCE |
TON |
1.99 |
1.99 |
1.99 |
1.99 |
| EXTRUDING CAPACITY |
KG/HR |
10 |
10 |
10 |
10 x
2 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
40 |
40 |
40 |
35 x
2 |
| L/D RATIO |
L/D |
22 |
22 |
22 |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
20 -
80 |
20 -
50 |
20 -
50 |
| DRIVE MOTOR |
HP VS |
5 |
5 |
10 |
7.5 x
2 |
| BARREL HEATING ZONE |
ZONE |
2 |
3 |
2 |
3 x 2 |
| BARREL HEATING
CAPACITY |
KW |
2.8 |
2.8 |
208 |
. |
| COOLING FAN (1/4HP) |
SET |
. |
. |
2 |
2 x 2 |
| HEAD & ACCUMULATOR |
| HEAD |
SET |
. |
2 |
. |
2 |
| HEAD HEATING ZONE |
ZONE |
1 |
3 |
3 |
3 x 2 |
| HEAD HEATING
CAPACITY |
KW |
1.6 |
3.4 |
2 |
|
| DIE OUTSIDE DIAMETER |
M/M |
45 |
35 |
45 |
32 |
| TWIN HEAD CENTER
DISTANCE |
M/M |
. |
100 |
. |
100 |
| PRODUCT MIN/MAX
DIAMETER |
M/M |
10 -
70 |
20 -
70 |
10 -
70 |
20 -
70 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
1.99 |
1.99 |
1.99 |
1.99 |
| CLAMPING MOLD STROKE |
M/M |
180 |
180 |
180 |
180 |
| OPEN/CLOSE STROKE |
M/M |
250 -
50 |
250 -
50 |
250 -
50 |
250 -
50 |
| MOLD DIMENSION |
M/M |
300 x
170 |
300 x
170 |
300 x
170 |
300 x
170 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
5 |
5 |
5 |
5 |
| AIR PRESSURE |
KG/CM2 |
4 - 6 |
4 - 6 |
4 - 6 |
4 - 6 |
| AIR COMPRESSOR |
HP |
2 |
2 |
2 |
2 |
| OIL TANK CAPACITY |
LITER |
170 |
170 |
170 |
170 |
| COOLING
WATER(L/MINUTE) |
LITER |
30 |
30 |
. |
30 |
| ELECTRICITY
CONSUMPTION |
KW |
14 |
15.7 |
16.2 |
26 |
| PACKING |
| MACHINE DIMENSION |
CM |
200x160x230 |
200x160x230 |
200x160x230 |
250x200x240 |
| NET WEIGHT |
TON |
1.6 |
1.6 |
1.6 |
2.1 |
| GROSS WEIGHT |
TON |
2 |
2 |
2 |
2.5 |
| PACKING DIMENSION |
CM |
206x167x200 |
206x167x200 |
260x167x200 |
271x221x225 |
|
