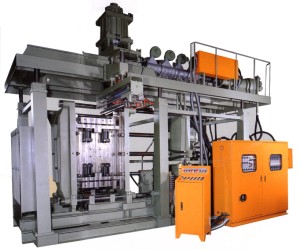

| Suitable for producing very large containers (i.e. 200 liters) or
other products such as toy cars, surf boards, ect.... |
|
 |
 |

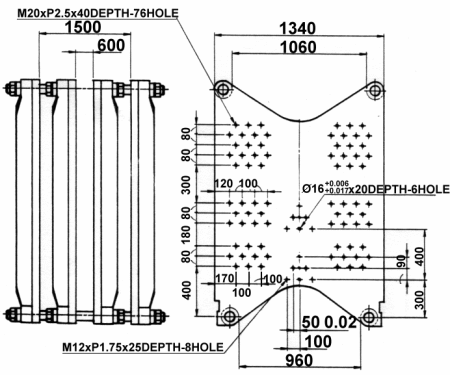

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle
No. |
BMM - 1500E |
| RESIN |
|
PE |
| PRODUCT MAX CAPACITY |
LITER |
200 |
| DRY CYCLE |
SEC/CYCLE |
. |
| MOLD CLAMPING FORCE |
TON |
72 |
| EXTRUDING CAPACITY |
KG/HR |
360 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
100 x
2 |
| L/D RATIO |
L/D |
26 |
| SCREW & BARREL
MATERIAL |
. |
SACM645 |
| SCREW TURNING SPEED |
R.P.M |
10 -
80 |
| BARREL HEATING
CAPACITY |
KW |
38.2 |
| TEMPERATURE CONTROL |
ZONE |
5 x 2 |
| COOLING FAN (1/4HP) |
SET |
4 x 2 |
| EXTRUDER POWER
(SDAFA HMB) |
CC |
3000
x 2 |
| HEAD & ACCUMULATOR |
| HEAD ACCUNULATE
CAPACITY |
KG |
16.4 |
| DIE OUTSIDE DIAMETER |
M/M |
400 |
| HEAD TEMPERATURE
CONTROL |
ZONE |
5 |
| HEAD HEATING
CAPACITY |
KW |
30 |
| MAX INJECTING
CAPACITY PER SHOT |
KG |
16 |
| INJECTING PRESSURE |
KG/CM2 |
140 |
| INJECTING CONTROL
TYPE |
. |
|
| PARISON THICKNESS
CONTROL |
POINT |
64 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
72 |
| CLAMPING MOLD STROKE |
M/M |
. |
| OPEN/CLOSE STROKE |
M/M |
600 -
1500 |
| MOLD DIMENSION |
M/M |
1700
x 900 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
75 x
2 |
| AIR PRESSURE |
KG/CM2 |
. |
| AIR COMPRESSOR |
HP |
15 |
| OIL TANK CAPACITY |
LITER |
1800 |
| COOLING
WATER(L/MINUTE) |
LITER |
150 |
| HYDRAULIC PRESSURE |
KG/CM2 |
140 |
| OTHERS |
| AIR COMPRESS |
HP |
15 |
| CKILLER |
TON |
10 |
| ELECTRICITY
CONSUMPTION |
KW |
. |
| ELECTRIC WIRE
DIAMETER |
M/M |
. |
| PACKING |
| MACHINE DIMENSION |
CM |
595x330x395 |
| NET WEIGHT |
TON |
50 |
| GROSS WEIGHT |
TON |
54 |
| PACKING DIMENSION |
CM |
. |
|
