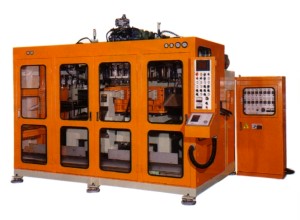

| Four Die Head and Double Station Machine with Automatic Top, Bottom
and Handle Deflashing System. |
| This machine is suitable to produce
various kind of plastic material of container from 100 to 1000 cc in a high- speed
production. |
|
 |
 |

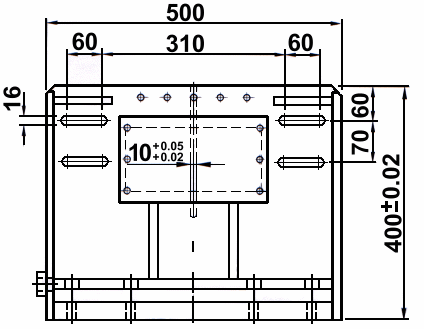

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle
No. |
BMM - 1000F - 2 |
| RESIN |
|
PE |
| PRODUCT MAX CAPACITY |
CC |
100 -
1000 |
| DRY CYCLE |
SEC/CYCLE |
6.5 -
6.8 |
| MOULD CLAMPING FORCE |
TON |
11 |
| EXTRUDING CAPACITY |
KG/HR |
90 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
80 |
| L/D RATIO |
L/D |
22 |
| SCREW TURNING SPEED |
R.P.M |
20 -
80 |
| DRIVE MOTER |
HP |
30 |
| BARREL HEATING ZONE |
ZONE |
3 |
| BARREL HEATING
CAPACITY |
KW |
8.6 |
| COOLING FAN |
SET |
3 |
| HEAD & ACCUMULATOR |
| DIE HEAD |
SET |
4 |
| DIE HEAD HEATING
ZONE |
ZONE |
13 |
| DIE HEAD HEATING
CAPACITY |
KW |
14 |
| DIE MOUTH MAX
DIMENSION |
M/M |
46 |
| DOUBLE DIE HEAD
CENTER DISTANCE |
M/M |
100 |
| PRODUCT MIN.MAX
DIAMETER |
M/M |
30 -
75 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
11 x
2 |
| CLAMPING MOLD STROKE |
M/M |
350 x
2 |
| OPEN/CLOSE STROKE |
M/M |
500-200
x 2 |
| MOLD DIMENSION |
M/M |
280x460x2
|
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
15 |
| AIR PRESSURE |
KG/CM2 |
4.0 -
6.0 |
| AIR COMPRESSOR |
HP |
5 |
| OIL TANK CAPACITY |
GALLOM |
150 |
| COOLING
WATER(L/MINUTE) |
LITER |
50 |
| ELECTRICITY
CONSUMPTION |
KW |
60 |
| PACKING |
| MACHINE DIMENSION |
CM |
. |
| NET WEIGHT |
TON |
. |
| GROSS WEIGHT |
TON |
. |
| PACKING DIMENSION |
CM |
. |
|
