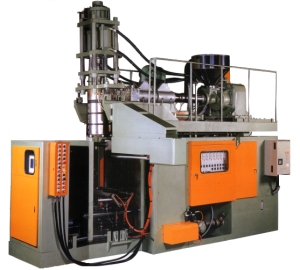

| Suitable for large capacity containers. Head designed for continuous
extrusion (first in-first out) which has been applied by other manufacturers in Europe,
USA and Japan, giving a high quality finish, high strength and high speed color change. |
|
 |
 |

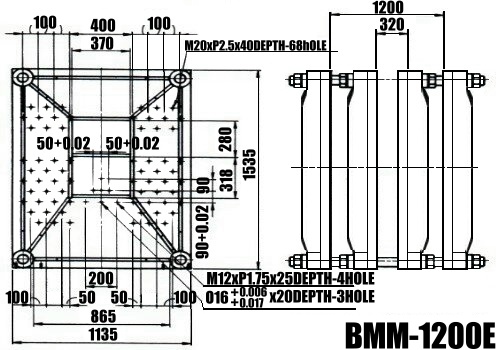

MOLD PLATE DIMENSION |
|
|
|
|
SPECIFICATION |
|
 BASIC SPECIFICATION |
| Modle No. |
BMM - 1000E |
BMM - 1200E |
| RESIN |
|
PE |
PE |
| PRODUCT MAX CAPACITY |
LITER |
15 -
40 |
30 -
80 |
| DRY CYCLE |
SEC/CYCLE |
. |
. |
| MOLD CLAMPING FORCE |
TON |
21 |
43 |
| EXTRUDING CAPACITY |
KG/HR |
140 |
180 |
| EXTRUTION SYSTEM |
| SCREW DIAMETER |
M/M |
90 |
100 |
| L/D RATIO |
L/D |
22 |
22 |
| SCREW & BARREL
MATERIAL |
. |
SACM645 |
SACM645 |
| SCREW TURNING SPEED |
R.P.M |
10 -
80 |
10 -
80 |
| BARREL HEATING
CAPACITY |
KW |
13.5 |
20.8 |
| TEMPERATURE CONTROL |
ZONE |
4 |
5 |
| COOLING FAN (1/4HP) |
SET |
2 |
4 |
| EXTRUDER POWER
(SDAFA HMB) |
CC |
2000 |
3000 |
| HEAD & ACCUMULATOR |
| HEAD ACCUNULATE
CAPACITY |
KG |
4 |
8 |
| DIE OUTSIDE DIAMETER |
M/M |
300 |
400 |
| HEAD TEMPERATURE
CONTROL |
ZONE |
4 |
5 |
| HEAD HEATING
CAPACITY |
KW |
14 |
32 |
| MAX INJECTING
CAPACITY PER SHOT |
KG |
3.8 |
7.5 |
| INJECTING PRESSURE |
KG/CM2 |
140 |
140 |
| INJECTING CONTROL
TYPE |
. |
|
| PARISON THICKNESS
CONTROL |
POINT |
1 |
1 |
| MOLD SYSTEM |
| MOLD CLAMPING FORCE |
TON |
21 |
43 |
| CLAMPING MOLD STROKE |
M/M |
. |
. |
| OPEN/CLOSE STROKE |
M/M |
300 -
1000 |
320 -
1200 |
| MOLD DIMENSION |
M/M |
1300x690 |
1400x825 |
| HYDRAULIC SYSTEM |
| HYDRAULIC PUMP POWER |
HP |
60 |
75 |
| AIR PRESSURE |
KG/CM2 |
. |
. |
| AIR COMPRESSOR |
HP |
7.5 |
7.5 |
| OIL TANK CAPACITY |
LITER |
1000 |
1400 |
| COOLING
WATER(L/MINUTE) |
LITER |
60 |
50 |
| HYDRAULIC PRESSURE |
KG/CM2 |
140 |
140 |
| OTHERS |
| AIR COMPRESS |
HP |
7.5 |
7.5 |
| CKILLER |
TON |
5 |
5 |
| ELECTRICITY
CONSUMPTION |
KW |
77.6 |
113 |
| ELECTRIC WIRE
DIAMETER |
M/M |
60 |
80 |
| PACKING |
| MACHINE DIMENSION |
CM |
490x190x400 |
590x200x420 |
| NET WEIGHT |
TON |
11 |
13 |
| GROSS WEIGHT |
TON |
13 |
15 |
| PACKING DIMENSION |
CM |
. |
. |
|
